PRODUCT
Prexs External Wall Panel is a new generation building material composed of two faces of super durable 4-layer coated steel of Bluescope (Australia) and EPS main core reinforced with 2 ends at clamping positions on modern European technology continuous production line. With C+ mounter smart concealed screws, the surface is smooth or delicately ribbed with flexible length exactly cut according to design.
- Depth: 50/75/100mm
- Heat endurance: Minus 10 to 50 Celsius
- Materials imported from: EU and U.S
CONTACT US
DESCRIPTION
Thanks to its light weight, component of EPS main core reinforced 02 ends at the clamping positions on modern European technology continuous production line, easy to be joined together without external adhesive, the size can be custom-made as requested by the investor, Prexs External Wall Panel is a light material, highly profiling, good bearing and heat resistant that will perfectly replace conventional wall building materials in construction, namely cover walls, external walls of factories, warehouses, etc.
Technical Construction
Prexs External Wall Panel is sandwich panel constructed of:
- The core is mainly composed of EPS with 2 ends of clamping positions reinforced with foam core on modern European technology continuous production line.
- The solid core with thickness from 50mm, 75mm 100mm
- Two faces are shielded with super durable steel 4-layers coated by Activate technology of Bluescope.
- Joined together with C clamping + smart concealed screws, compact and firm.
- Surface of wall panel is smooth or delicately ribbed with exact length customized according to design requirement.
Features of Product:
- Insulating, soundproof, colorproof.
- Increase rigidity for walls, ceiling.
- Easy to construct, quickly install.
- Save time of construction, save man power,
- Save frame, truss and purlin.
- High durable, aesthetic, safe to human health.
- More optimal cost than other materials of the same function.
Popular colors of Bluescope Sumo for sandwich panel (*)
(*) In addition to the standard colors above, if you want to choose other colors, please contact Sales Department.
Applications of Prexs External Wall Panel
Factory
Cold storage
Clean room
Warehouse
Schools
Hospital
Prexs External Wall Panels are applied in erection of external wall, cover wall, etc. anti-noise, insulation, high colorproof, used to assemble enclosure partitions, roofing, ceiling for factories of seafood processing, agricultural product processing, food processing, short-term production, or temporary shelters, motels, worker accommodation and projects with low investment costs. Prexs External Panels are also suitable to the projects on weak ground, where is possible to create light structure, cross large spans, easy to combine with erection at height, reducing gravity of the foundation and structure. Thus, Prexs External Wall Panels are being commonly used for factories, factories in stead of conventional brick and concrete walls.
SECTION
SPECIFICATIONS
Depth:
50, 75, 100(mm)
Working width:
1065 mm
Maximum length:
8m
Steel brand:
Bluescope Sumo
Standard steel thickness:
0.46mm
Insulation core:
EPS và Foam
Weight (/m2) with thickness 100mm
8.5~9.9
REASONS TO CHOOSE THE PRODUCT
Sandwich panel have stable quality, is trusted by hundreds of contractors, used for thousands of projects nationwide
The most diverse range of products in the market with all types: Panel EPS, Panel PU, Panel PIR, Panel rockwool
The leading production line of Europe, Vietnam's largest production capacity of sandwich panel meet schedule for every projects
Product
- Insulating
- Aesthetics
Prexs Internal Wall Panel is a new generation building material composed of two faces of super durable 4-layer coated steel of Bluescope (Australia) ...
- Soundproof
- Insulating
- Fire Resistant
- Aesthetics
Prich Internal Wall Panel is PUR (Polyurethane) sandwich panel constructed of two faces of super durable steel 4-layers coated by Activate technology ...
- Soundproof
- Insulating
- Fire Resistant

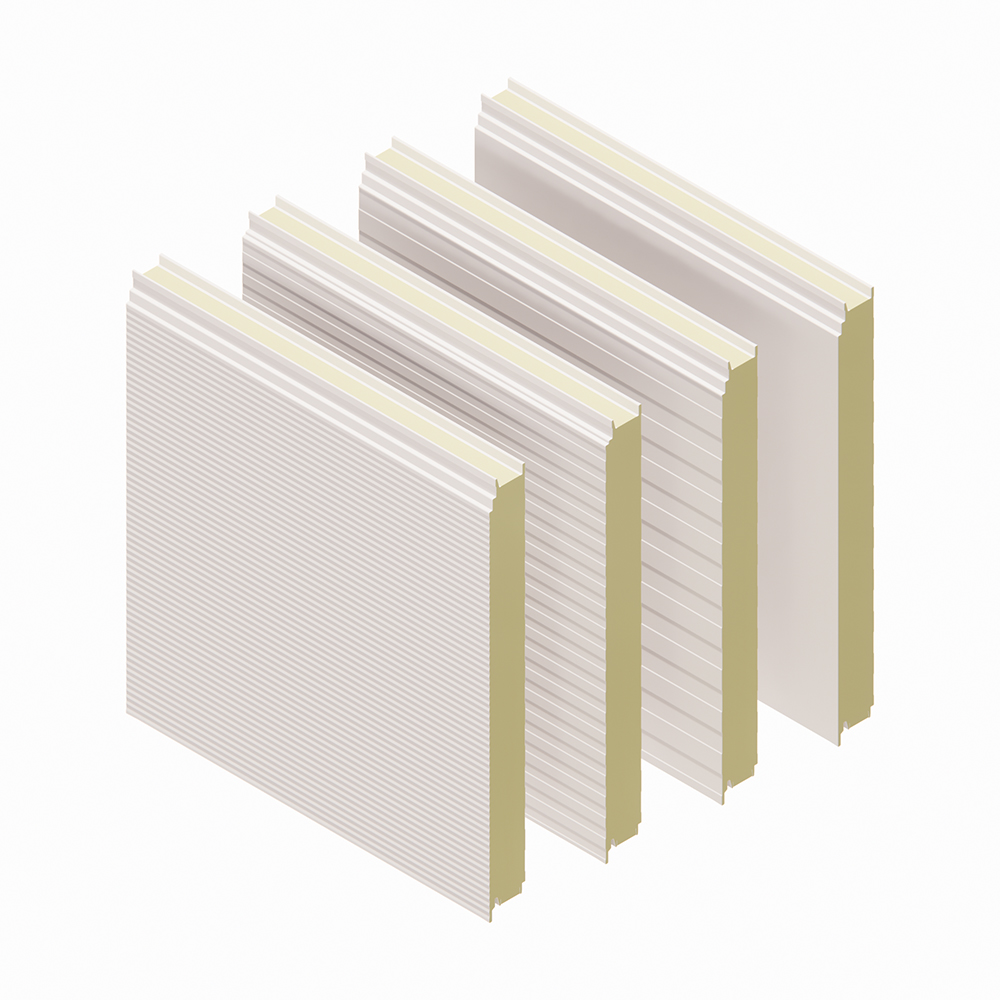

Procy Internal Wall Panel is a premium PIR sandwich panel made of new generation building materials with two faces of super durable 4-layer coated ...
- Soundproof
- Insulating
- Fire Resistant
- Aesthetics

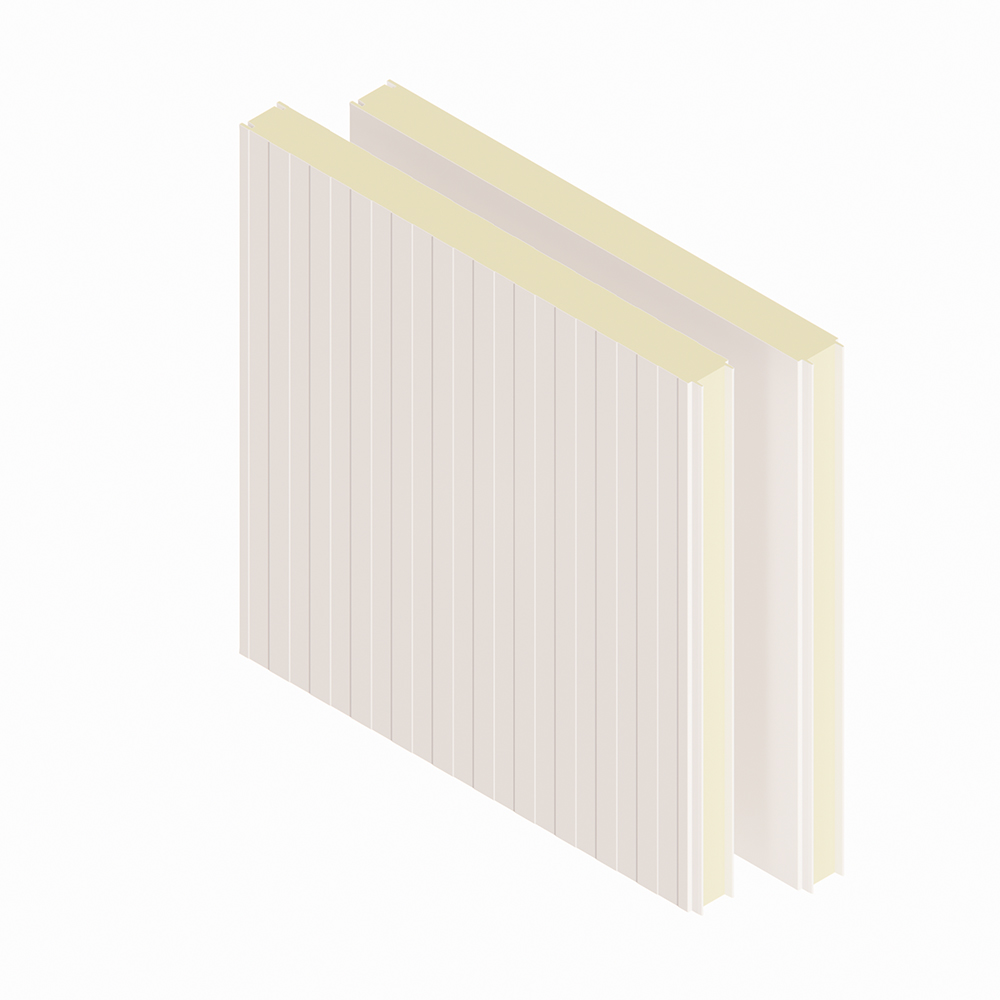

Procy External Wall Panel is a premium PIR sandwich panel, made of new generation building materials with two faces of super durable 4-layer coated ...
